PLANT LIST
What equipment do we have?
MILL/ TURN

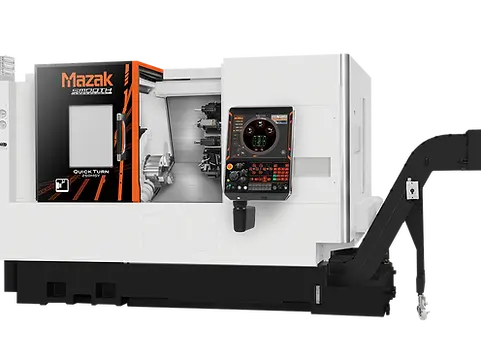

Mazak 250MSY Lathe
Max Swing 695mm
Max Machining Diameter 380mm
Distance between Chucks 575mm
Max Weight 300kg
Bar work capacity Φ76.2 mm
5 Axis MILLING
Mazak CV5-500
Table Size Φ500 mm
Max Workpiece size Φ500 mm × 320 mm
Max Load 200kg
Max Indexing Increment 0.0001°
Max Spindle RPM 15,000rpm
METROLOGY
Aberlink Axiom CMM
Axis Travel 640mm x 600mm x 500mm
Volumetric Accuracy (2.0µm + L/250mm)
Load Capacity 300kg
3D PRINTING
BAMBU LAB H2S COMBO
Print Volume 340*320*340 mm³
Multi-color 3D Printing
Closed-loop Servo Motor Extruder
5μm Resolution Optical Motion Calibration
350°C Nozzle & 65°C Active Chamber Heating
Full Filament Path AI Detection
